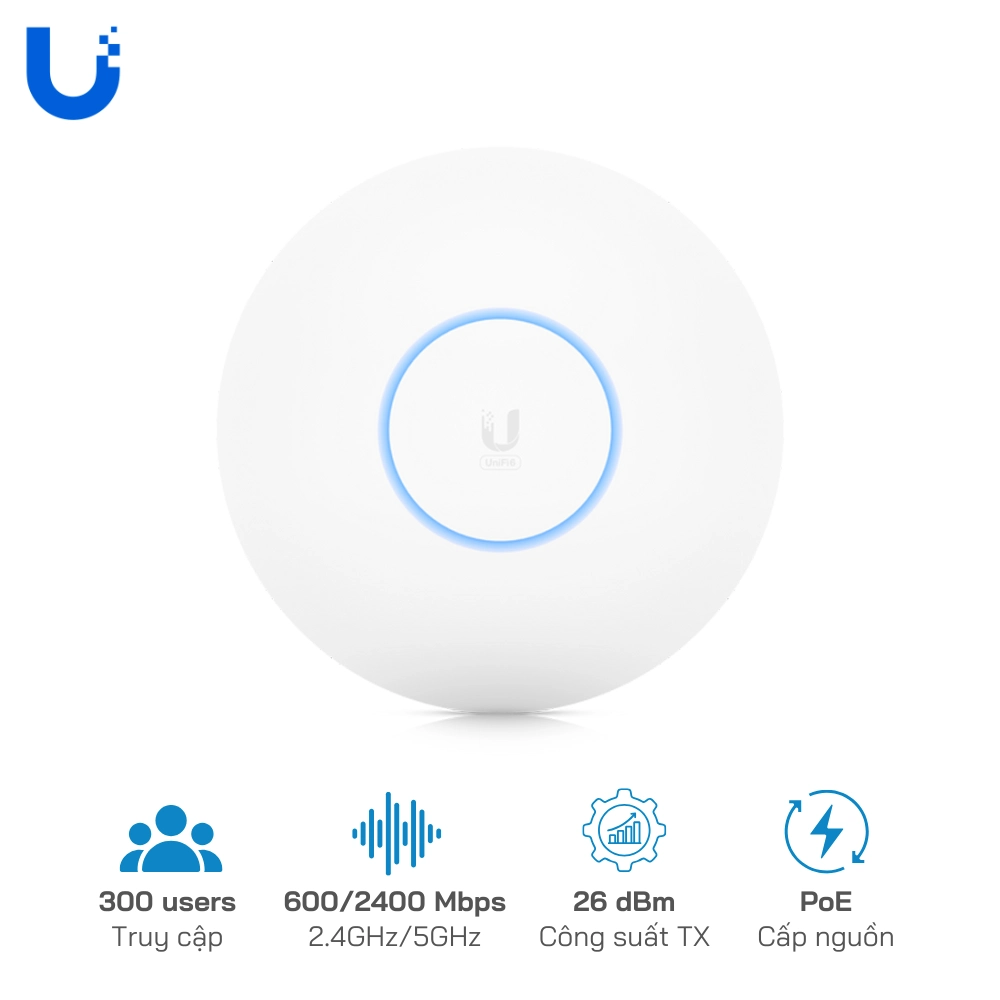

Bộ Phát Wifi UniFi 6 Long-Range (U6-LR)

Dimensions

Ø220 x 48 mm (Ø8.66 x 1.89″)

Weight

Without Mount: 800 g (1.76 lb)

With Mount: 930 g (2.05 lb)

Enclosure Material

Plastic

Mounting Material

SGCC Steel

Weatherproong

IP54

HARDWARE

Processor Specs

Dual-Core® Cortex® A53 at 1.35 GHz

Memory Information

512 MB

Management Interface

Ethernet In-Band

Networking Interface

(1) 1 Gbps Ethernet RJ45

Buttons

Factory Reset

LEDs

RGB

Power Method

802.3at PoE, Passive PoE (48V)

Power Supply

802.3at PoE; 48V, 0.65A PoE Adapter (Not Included)

Supported Voltage Range

44 to 57VDC

Max. Power Consumption

16.5W

Max. TX Power

2.4 GHz

26 dBm

5 GHz

26 dBm

MIMO

2.4 GHz

4 x 4

5 GHz

4 x 4

Throughput Speeds

2.4 GHz

600 Mbps

5 GHz

2400 Mbps

Antenna Gain

2.4 GHz

4 dBi

5 GHz

5.5 dBi

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-30 to 60° C (-22 to 140° F)

Operating Humidity

5 – 95% Noncondensing

Certifications

CE, FCC, IC

SOFTWARE

Wi-Fi Standards

802.11a/b/g

Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per Radio

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Trafc Isolation

Supported

Concurrent Clients

300+

SUPPORTED DATA RATES (MBPS)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4)

6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)

802.11ac (Wi-Fi 5)

6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (Wi-Fi 6)

7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
